Introduction to OCTOPI 1.0
A Decentralized, Off-Grid Sanitation Block for Communities, Construction Sites, and Public Spaces.

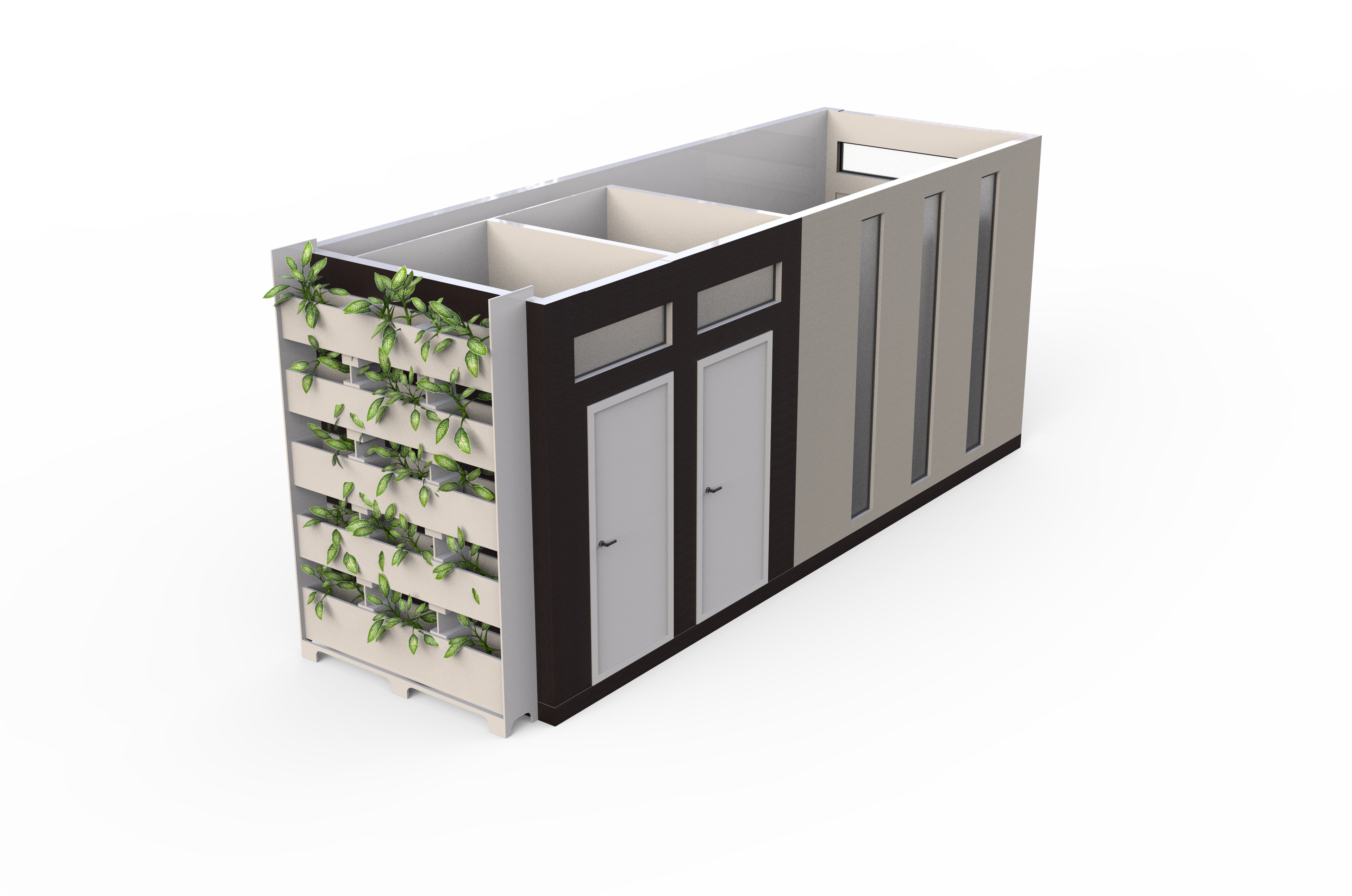

OCTOPI 1.0: Mobile Sanitation Reinvented
Introducing OCTOPI 1.0, an innovative, sustainable sanitation solution offering cutting-edge engineering with real-world usability. The OCTOPI Toilet Block is a freestanding facility designed to provide accessible, dignified, and hygienic sanitation for communities globally lacking adequate infrastructure.
Requiring no fixed utility connections, the block can be quickly deployed and conveniently relocated as needed. Hassle-free mobility allows flexible implementation wherever sanitation facilities are most critically required, while a closed-loop treatment system enables safe, clean sanitation where traditional facilities fall short.
Public Spaces & Parks
Key Features of OCTOPI 1.0
Designed for performance, sustainability, and autonomy, OCTOPI 1.0 combines cutting-edge engineering with real-world usability.
OCTOPI 1.0 / Anatomy
01
Solar Powered, Seven Days Off-Grid
A 320 W rooftop monocrystalline array with lithium-iron buffer storage runs ventilation, lighting, and pumps for up to seven sunless days. Auxiliary panels extend autonomy further.
02
Greywater Recovery to 65%
On-board closed-loop treatment recovers up to 65% of supply water for flushing, certified to ISO 30500 Category C. Sealed waste tank, no trenching, no leaching.
03
Deploys in Under 90 Minutes
Lifts onto a standard flatbed, levels on uneven ground, and returns to service in under 90 minutes including commissioning. No fixed utility connections, no permits.
04
Accessible by Design
A wheelchair-accessible bay is standard, alongside daylit interiors, full-height doors, anti-microbial surfaces, and dignified spatial proportions for every user.
05
Engineered for Public Use
Powder-coated steel frame on a composite floor pan, tamper-proof fittings, reinforced doors, and surfaces that hold up under 240 daily uses between services.
06
Compliant in Every Market
Tested and certified to ISO 30500, ADA 2010, CE 2014/35/EU and SASO IECEE. Ready for procurement across utilities, public works, energy, and humanitarian deployments.
OCTOPI 1.0 Parameters
A self-contained, accessible, off-grid sanitation block built to international standards.
Capacity
6cabins
Up to 240 daily uses per unit without service.
Solar Array
320W
Monocrystalline IP67 panels with lithium-iron buffer.
Water Recovery
65%
Closed-loop greywater treatment, ISO 30500 Cat C.
Deploy Time
<90min
From flatbed to first use, including commissioning.
Footprint & Envelope
6.05 × 2.43 × 2.59 m
Length · Width · Height. High-cube ISO geometry, stackable two-high for transport.
Compliance
ISO 30500 · ADA 2010 · CE · SASO
Tested for habitable hygiene, accessibility, electrical safety and Saudi market entry.
Where OCTOPI 1.0 Is Already Working
A scalable sanitation solution currently deployed across construction camps, public spaces, transit corridors and humanitarian zones.

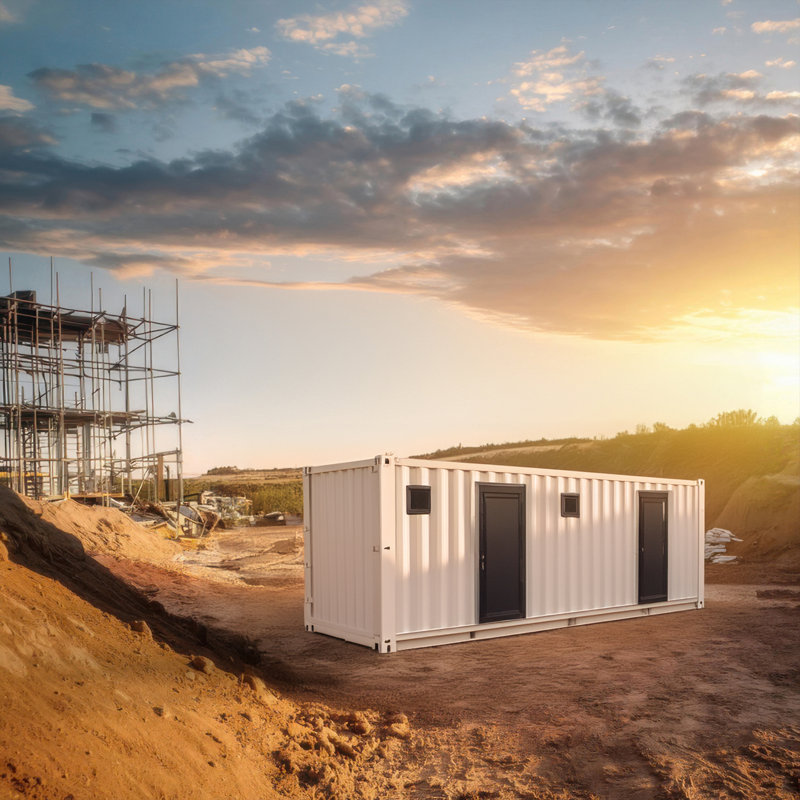

Construction Sites

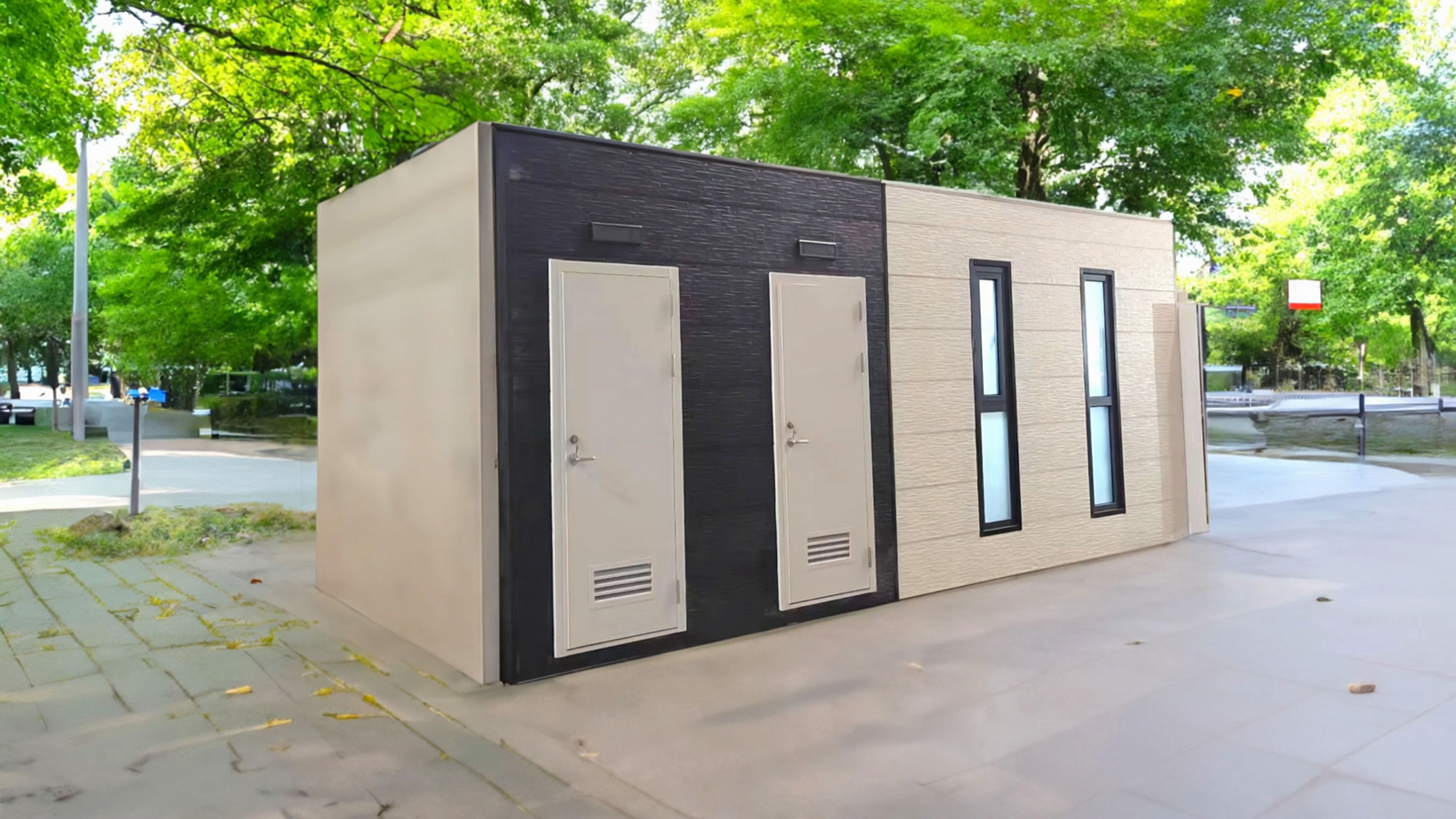

Public Parks

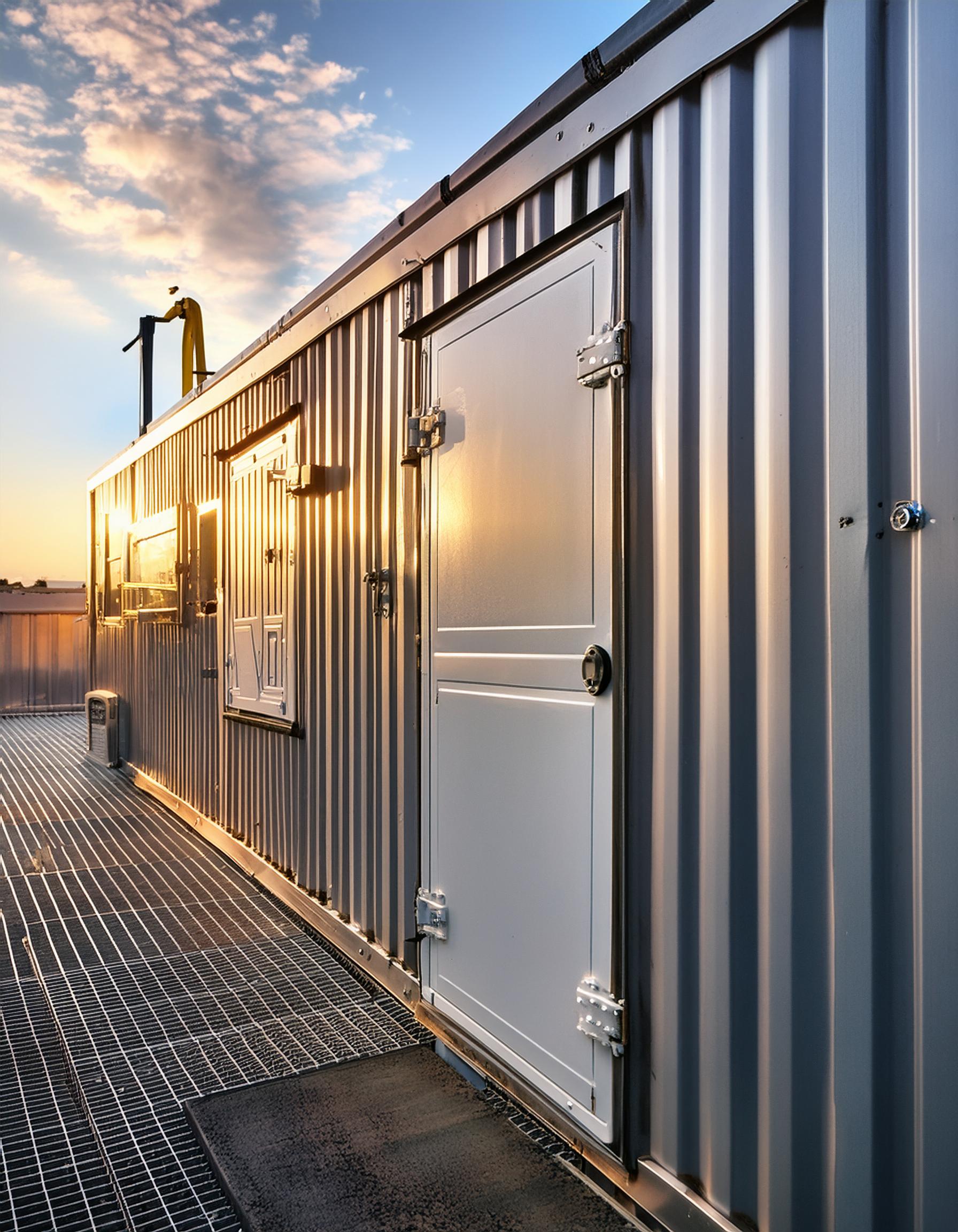

Onshore-Offshore Oil & Gas

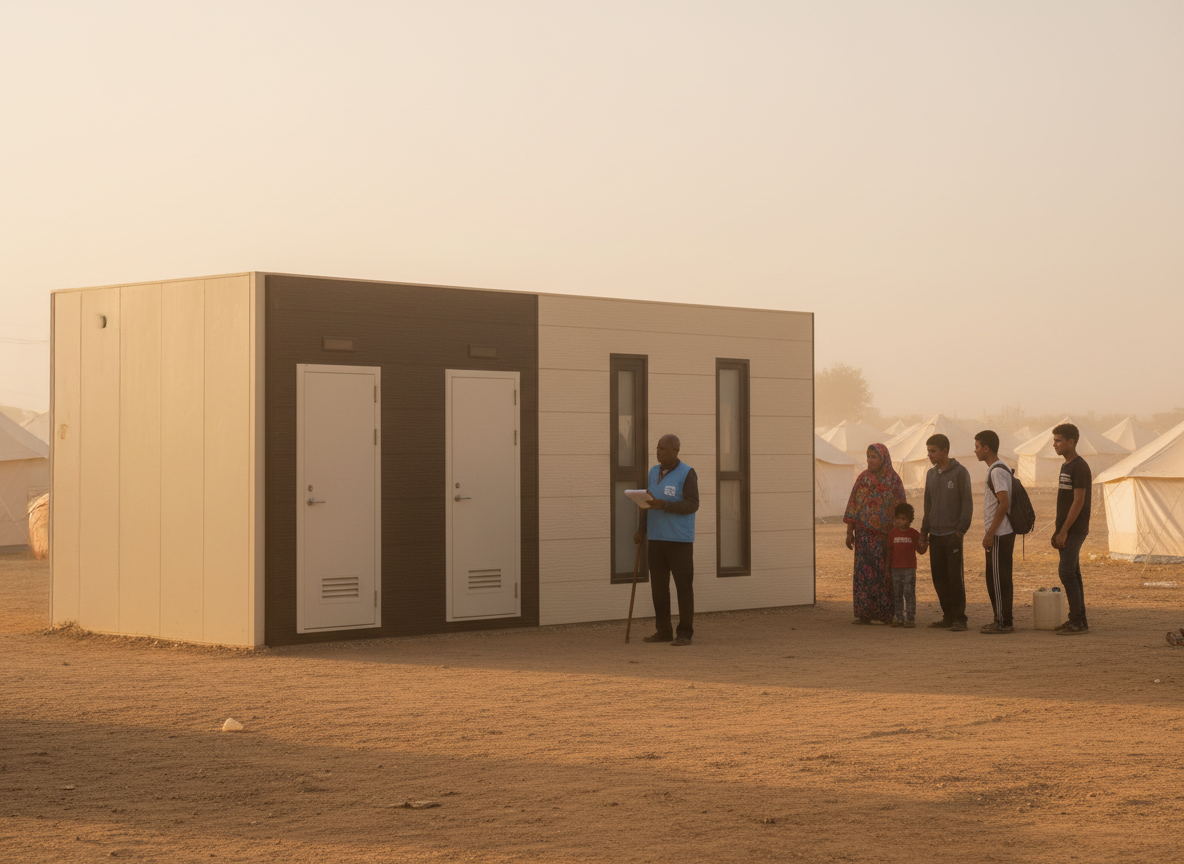

Humanitarian Response
OCTOPI 1.0 Clients
Specified by operators across utilities, energy, and public infrastructure.
Experience Decentralized, Dignified Sanitation Anywhere with OCTOPI 1.0.
Model the return on investment for your specific site, or request the full OCTOPI 1.0 specification sheet from our team.
